Orthopedic
FLAT SUTURE Sleeve Anchor

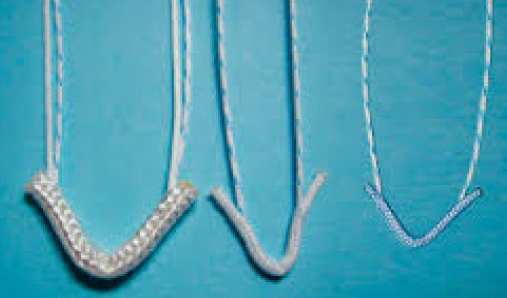

Flat Suture
Bioceramic powder for bone grafting
- For fixing tendons to bones, ligament fixation
- Co-braid of UHMWPE & PET
| Width mm | Average value | |
|---|---|---|
| Width range mm | Thickness mm | |
| 3 | 3.00 ±0.3 | 0.34±0.5 |
| 5 | 5.00 ±0.5 | 0.67±0.8 |

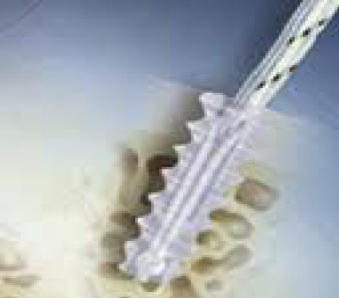

Sleeve Anchor
Fixing the bone to ligament
- Used in all suture anchor
(sleeve + suture = all suture anchor) - Made of PET
| Standard | Sleeve anchor | ||
|---|---|---|---|
| Diameter mm | Length cm | Minimum Pull out strength with suture mm |
|
| 1.5 / 1.8 | 1.1~1.4 | 1~200 | 125N |
| 2.9 | 1.9~2.3 | 1~200 | 270N |
** Additional sleeve size & all suture anchor assembly can be customized according to customer’s request.
Application
- The material can be applied in Orthopedic procedure for hip, knee, shoulder, elbow, wrist and ankle etc.
