General Surgery
MetaClip-P & Appliers
Polymer Ligating Clips & Appliers
MetaClip-P Features
- Non slip type
- Clear Locking sound
- Biocompatible Polymer
- Non-absorbable Polymer
- Flexible Hinge
- High tensile strength

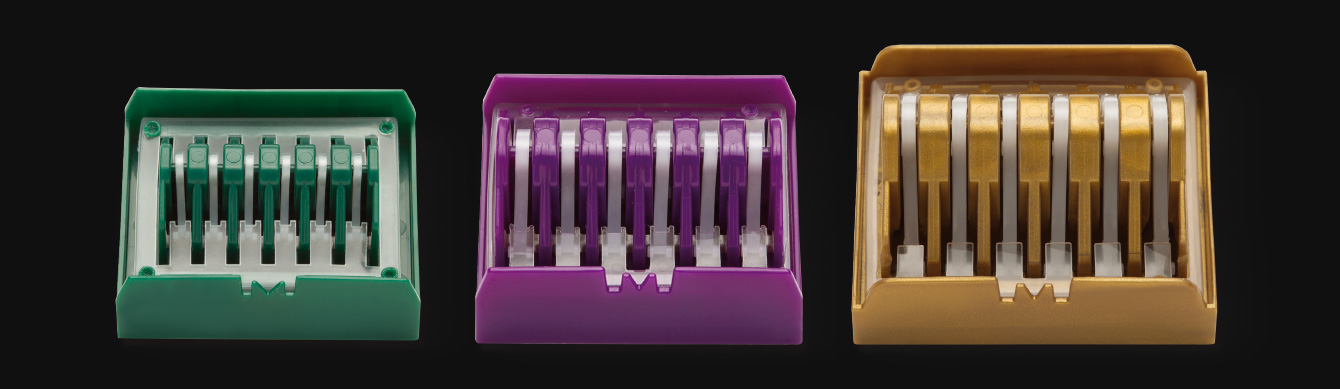

Clip Specification

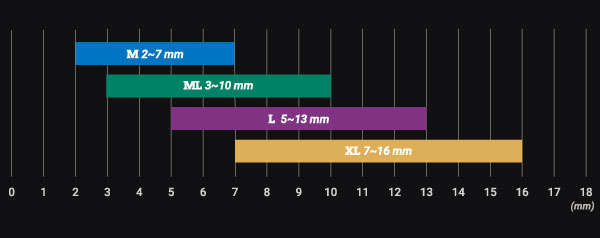

Vessels / Tissues bundle size range
M 2~7mm
Ref No. PCMM01A
- Clips/Cartridge 6
- Cartridges/Box 14
- Clips/Box 84
ML 3~10mm
Ref No. PCML02A
- Clips/Cartridge 6
- Cartridges/Box 14
- Clips/Box 84
L 5~13mm
Ref No. PCLL03A
- Clips/Cartridge 6
- Cartridges/Box 14
- Clips/Box 84
XL 7~16mm
Ref No. PCXL04A
- Clips/Cartridge 6
- Cartridges/Box 14
- Clips/Box 84
Non-Absorbable Polymer
is a biocompatible polymer that does not interfere with CT, MRI or X-ray.
① Bosses
enhance security in applier jaws
② Intergrated Ridges
designed to prevent slippage with a reliable 360° grip
③ Bow-Shape
Allows removal with appropriate instrument
④ Flexible hinge
allows clip to be inserted
⑤ Locking Mechanism
provides secure closure with clear locking sound that allows user to assure that the clip is locked
⑥ The teeth is designed to prevent slippage
The circular projection inside the clip prevents slippage
Appliers Features
- Non - detachable design for easier maintenance and durability
- Made of high quality stainless steel
- Color coded size matching cartridge
- Compatible with corresponding sizes of Meta Clip-P polymer
Proper Jaw Angle
for better loading it is necessary to position the applier jaw perpendicular to the cartridge body
Applier Sterilization
Sterilization Conditions
Instrument state
| APPLIER | TEMPERTURE | EXPOSURE TIME | DRYING TIME |
|---|---|---|---|
| All Type Applier | 134ºC | 3 minutes | 30 minutes |

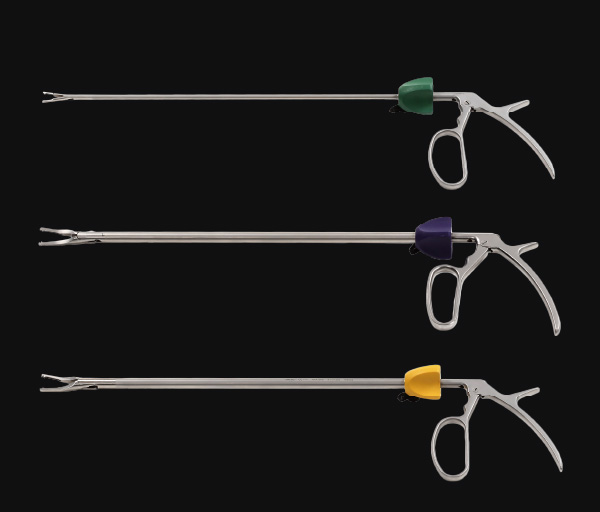

OPEN APPLIER
Clip Size |
Model NO. |
Length |
|---|---|---|
| M | OMAPMMA | 280mm |
| ML | OMAPMLA | 280mm |
| L | OMAPLLA | 280mm |
| XL | OMAPXLA | 280mm |

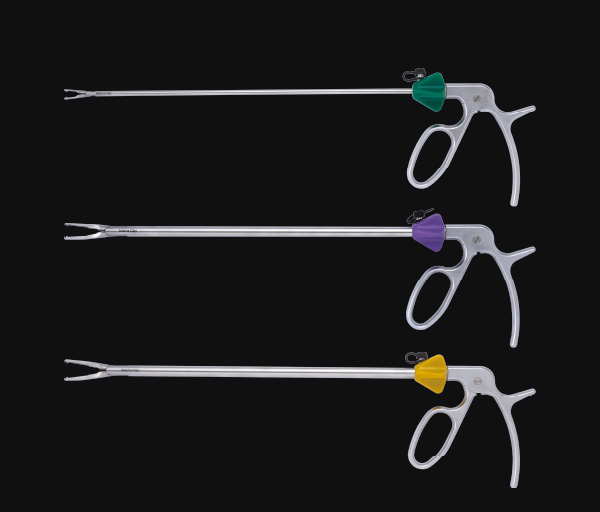

ENDO APPLIER
Clip Size |
Model NO. |
Shaft Length |
Shaft Diameter |
|---|---|---|---|
| M | EMAPMMA | 330mm | 5mm |
| ML | EMAPMLA | 330mm | 5mm |
| L | EMAPLLA | 330mm | 10mm |
| XL | EMAPXLA | 330mm | 10mm |

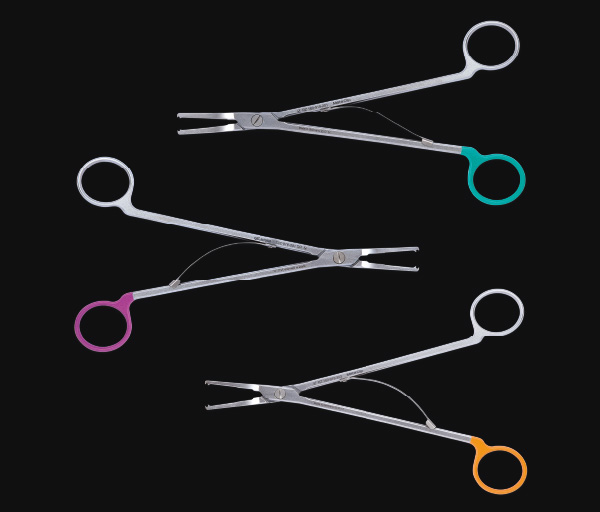

OPEN REMOVER
Clip Size |
Model NO. |
Length |
|---|---|---|
| M/ML | ORAPMLA | 280mm |
| L/XL | ORAPXLA | 280mm |
ENDO REMOVER
Clip Size |
Model NO. |
Shaft Length |
Shaft Diameter |
|---|---|---|---|
| M/ML | ERAPMLA | 320mm | 5mm |
| L/XL | ERAPXLA | 320mm | 10mm |
Order Information
Clip Size |
Open Applier-Standard |
Endo Applier-Standard |
Open Remover |
Endo Remover |
|---|---|---|---|---|
| M | OMAPMMA | EMAPMMA | ORAPMLA | ERAPMLA |
| ML | OMAPMLA | EMAPMLA | ORAPMLA | ERAPMLA |
| L | OMAPLLA | EMAPLLA | ORAPXLA | ERAPXLA |
| XL | OMAPXLA | EMAPXLA | ORAPXLA | ERAPXLA |
